Now the headstock and the bridge.

With the body and bridge done, Vince turns to the headstock and bridge. These are in Bolivian (not Brazilian) rosewood.

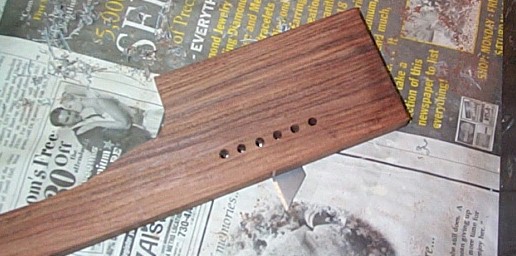

30. Vince now starts work on the Bolivian bridge.
(click on thumbnail for full-sized photograph)

.

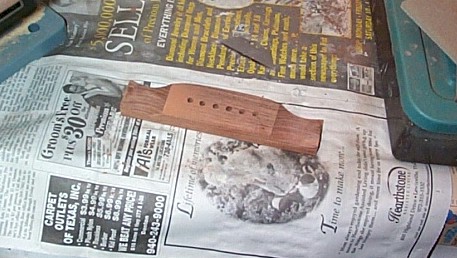

31. The first bridge looks nice, but it's a bit too narrow and has to be discarded.
(click on thumbnail for full-sized photograph)

32. The headstock inlay work has started .
(click on thumbnail for full-sized photograph)

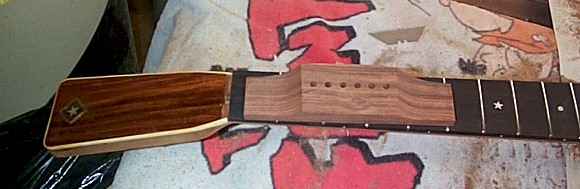

33. Vince has completed Jerry Jeff's design for the star inlay on the headstock, and has the second bridge cut out.
(click on thumbnail for full-sized photograph)

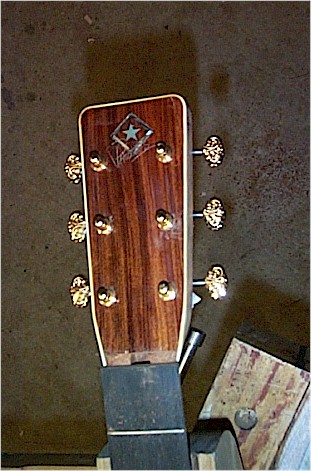

34. The headstock is starting to look pretty with the antique Waverlys in place. They are absolutely the Rolls Royce  in machine head design.
(click on thumbnail for full-sized photograph)

Then, as the captain says, "on to the bridge"!!

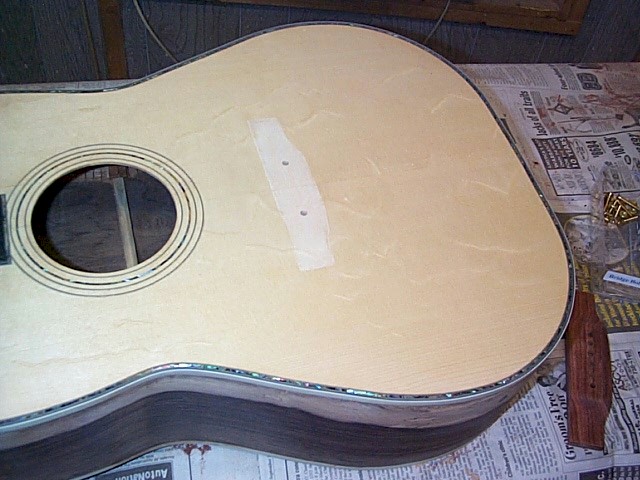

35. Lacquer is scraped from top in the area of the bridge for gluing.
(click on thumbnail for full-sized photograph)

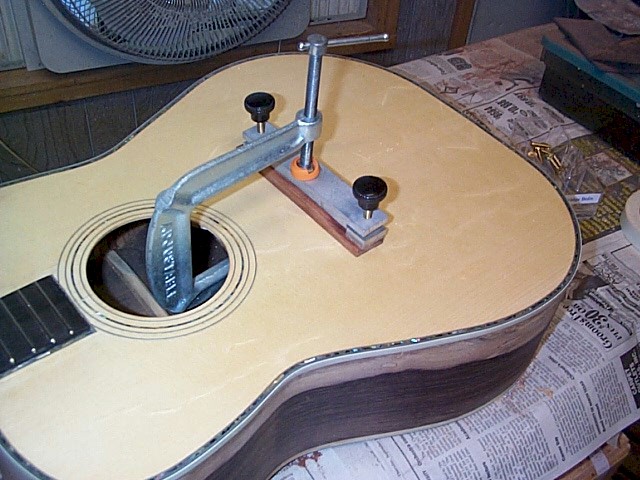

36. The bridge is glued on to the top.
(click on thumbnail for full-sized photograph)

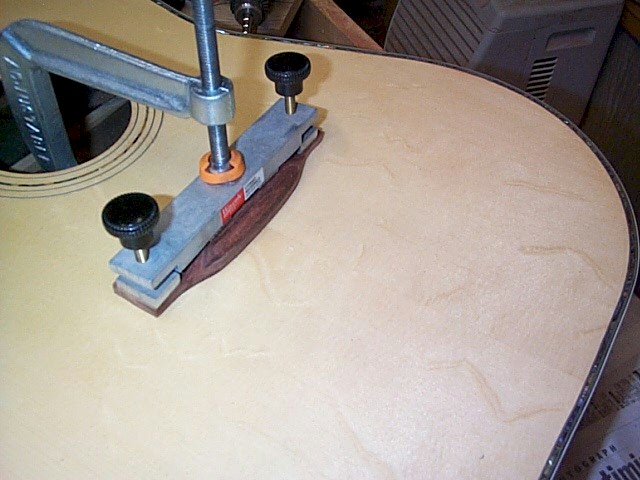

37. As the bridge is glued to the top, you can get a taste of what the guitar will look like with the Brazilian sapwood and the abalone..
(click on thumbnail for full-sized photograph)
